AQUA 40.00 High Temperature Oven HT 1300
Powerful Extension for High-Temperature Moisture Analysis
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 play/stop
reading button icon
Product description
The High Temperature Oven HT 1300 is a high-performance extension module for the Karl Fischer titrator AQUA 40.00, designed for precise water extraction from samples that release moisture only at elevated temperatures between 300 °C and 1300 °C. This allows you to reliably analyze samples where water forms as a reaction product during heating.

Samples are placed into small sample boats and automatically introduced into the hot zone of the oven using a specialized valve system. This ensures that the carrier gas flow remains uninterrupted throughout the process.

Within the inert gas stream, the water is fully extracted from the sample and transferred directly to the measuring cell of the AQUA 40.00 Basic Module via a secure connection module.

Thanks to the integrated two-stage drying system for the inert carrier gas, an extremely low background drift is achieved, ensuring highly accurate and reproducible results even at very high temperatures.


Bild mit Text unten rechts
AQUA 40.00 Basic Module with connection module and high temperature oven HT 1300
AQUA 40.00 Basic Module with connection module and high temperature oven HT 1300
MP3 play/stop
reading button icon
Applications
Water determination in solid, pasty and liquid samples at heating temperatures up to 1300 °C, e. g.
  • Inorganic salts
  • Building materials
  • Metals and alloys
  • Molecular sieves
  • Oxides/hydroxides
  • Cement
MP3 play/stop
reading button icon
Advantages
  • No sample pre-treatment necessary
  • Short measurement time
  • Easy to operate manual feeder
  • AQUA 40.00 software with extension to control high temperature oven
MP3 play/stop
reading button icon
Features and Results
  • High temperature heating for trace amounts of water
  • Can be coupled directly with the AQUA 40.00 Basic Module
  • Uniform software with integrated oven temperature control
  • Sample supply in ceramic or quartz glass boats
  • Gas supply nitrogen or argon
  • Isothermal heating or temperature program
Bild mit Text unten rechts

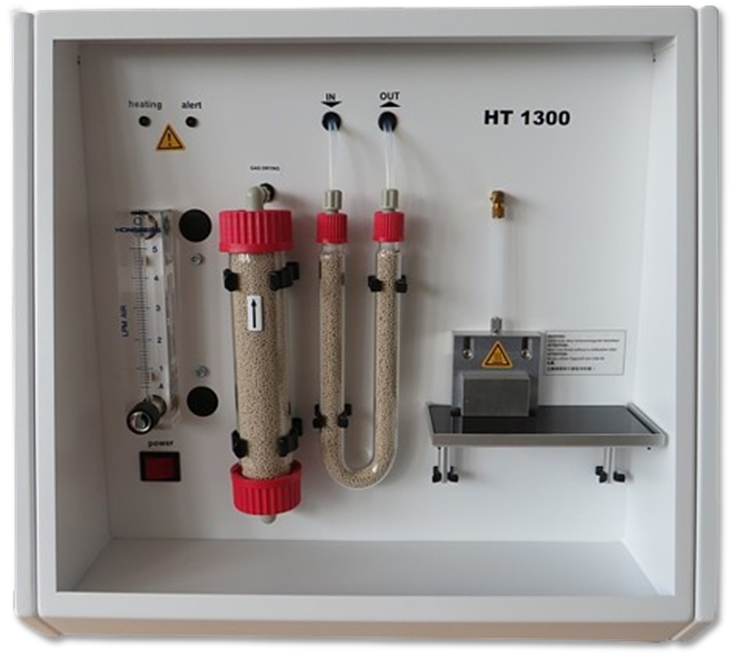

High temperature oven HT 1300 for Karl Fischer titrator AQUA 40.00
High temperature oven HT 1300 for Karl Fischer titrator AQUA 40.00
MP3 play/stop
reading button icon
Software requirements
Operating system
Windows 10 or higher
Platform
32 Bit (x86)
CPU
1 Ghz
RAM
1 GB
HDD / SSD
17 GB
GPU
DirectX 9 with WDDM 1.0
Available languages
German, English
Number of connections
1
Data connection
RS 232 or USB-Hub
Bild mit Text unten rechts

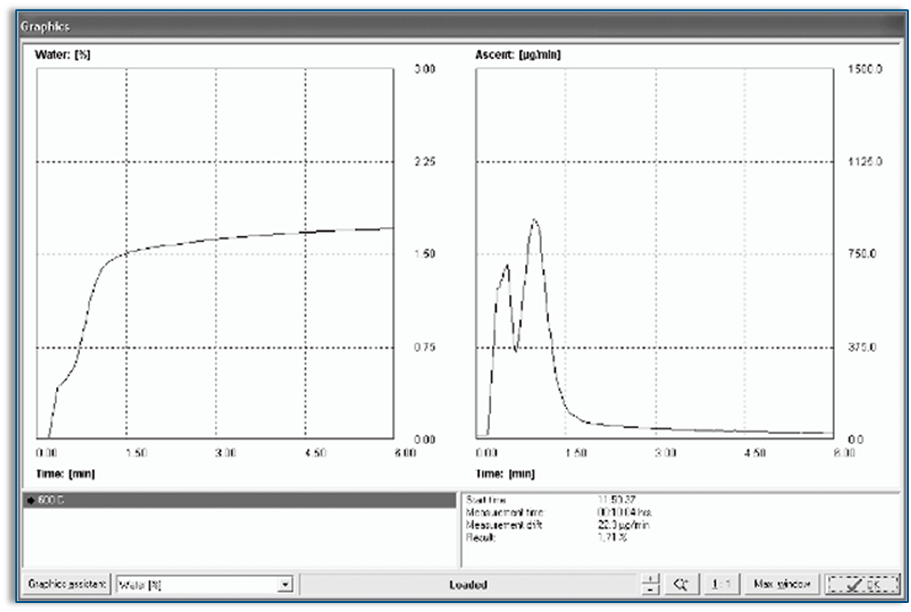

Water determination in zeolite (molecular sieve), heating at constant temperature (T = 600 °C)
Water determination in zeolite (molecular sieve), heating at constant temperature (T = 600 °C)
MP3 play/stop
reading button icon
Technical specifications
Device Type
Main unit
Power supply
230 V/50 Hz or 110 V/60 Hz
Dimensions (L x H x D)
510 x 470 x 550 mm
Weight
22 kg
Data connection
RS 232
Device control
PC Software
Heating temperature
300 to 1300 °C
Sample amount
Up to 3000 mg
Sample feeding
Sample boats made of ceramic or quartz glass
(depends on working temperature)

Carrier gas
Nitrogen or argon
Temperature control
From AQUA 40.00 software
Heating procedure
Isothermal or temperature program, free adjustable
