OnlineNH3
Continuous Ammonia Gas Monitoring with High Precision
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 abspielen/stoppen
Bild zum Anklicken
Product description
The OnlineNH3 system enables continuous and precise quantitative determination of ammonia (NH3) in gas mixtures.

Designed with an integrated dilution step, the system can handle a wide measurement range – from very high concentrations (100 to 20,000 ppm) to very low levels down to the odour threshold (0.1 to 100 ppm).

Reliable Technology for Demanding Applications

The OnlineNH3 features a selective amperometric sensor with gas-selective membranes, membrane pumps for sample transport, and an integrated PC for real-time data recording, trend analysis, and alarm management.

Measurement values can be transmitted directly to the control room via analog and digital (alarm) outputs.

An integrated cleaning system ensures drift-free analysis even in oxygen-free gases such as biogas, significantly extending the sensor lifetime through stress-free operation.

Thanks to its precise and stable measurement principle, the OnlineNH3 is ideal for ammonia-controlled regulation of enrichment and purification processes.

Flexible System Design

The same technology platform is also available for continuous monitoring of hydrogen sulphide (H2S), sulfur dioxide (SO3), or ozone (O3).
Bild mit Text unten rechts

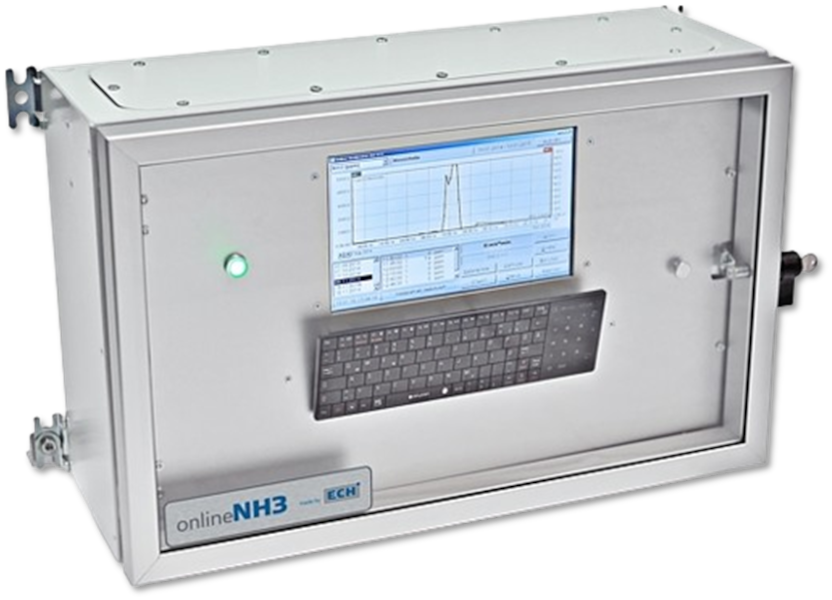

Analyzer for online determination of NH3 in gases
Analyzer for online determination of NH3 in gases
MP3 abspielen/stoppen
Bild zum Anklicken
Applications
Check mark icon
As basis for NH3 adjusted regulations (e. g. monitoring of air quality in livestock buildings)
Check mark icon
Environment analysis
Check mark icon
Industrial sectors
Check mark icon
Animal husbandry
Check mark icon
Biogas plants
MP3 abspielen/stoppen
Bild zum Anklicken
Advantages
Check mark icon
Fully automated sample dosing
Check mark icon
Hardly any cross-sensitivities due to selective electrochemical sensor
Check mark icon
Output 4 to 20 mA for integration of the NH3 signal into the local control system
Check mark icon
Long sensor life due to intermittent gas path gas path switching
Check mark icon
Active sample aspiration, thus free installation (wall mounting) with up to 100 m distance from the sampling point
MP3 abspielen/stoppen
Bild zum Anklicken
Features and Results
Check mark icon
Continuous NH3 determination in gases (measurement duration under 5 min)
Check mark icon
Robust analysis method
Check mark icon
Easy calibration steps
Check mark icon
Software easy-to-use
Check mark icon
Integrated rinsing steps for measuring of continually
Check mark icon
Fresh samples
Check mark icon
Active sample intake of the gas up to a distance of 100 m – variable setup of device (wall mounted)
Check mark icon
Also available for determination of hydrogen sulphide (H2S), sulphur dioxide (SO2) or ozone (O3)
Bild mit Text unten rechts

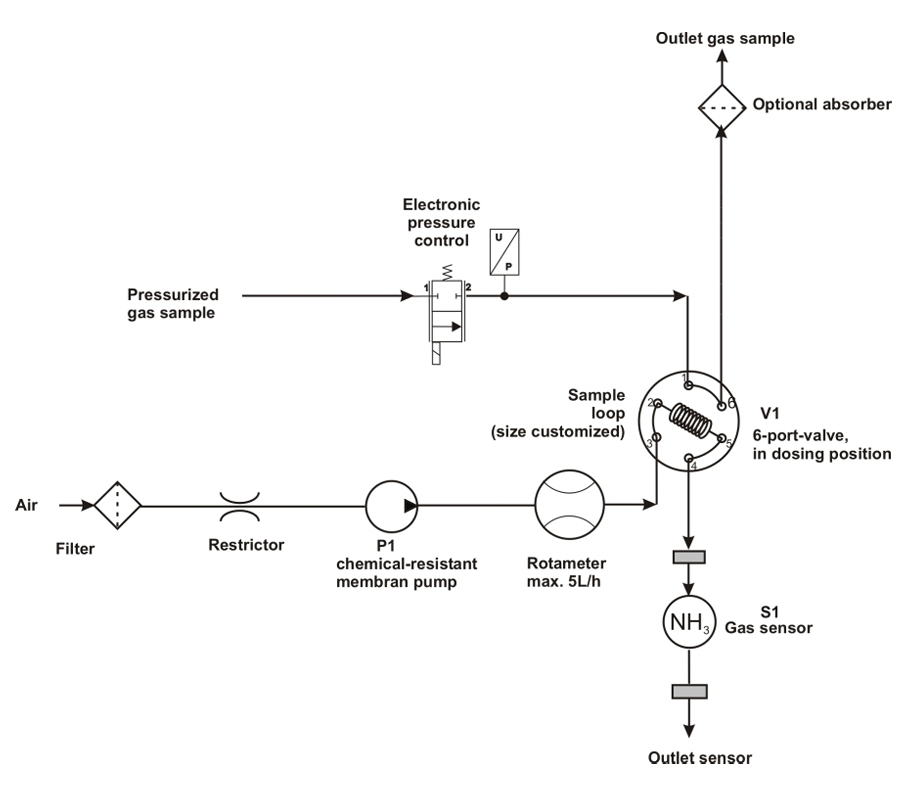

Flowsheet of the device
Flowsheet of the device
MP3 abspielen/stoppen
Bild zum Anklicken
Software requirements
Operating system
Windows 10 or higher
Platform
32 Bit (x86)
CPU
1 Ghz
RAM
1 GB
HDD / SSD
17 GB
GPU
DirectX 9 with WDDM 1.0
Available languages
German, English
Number of connections
1
PC and Software
Built into the device
Bild mit Text unten rechts
Determination of NH3 at two sampling points before and after a biofilter
Determination of NH3 at two sampling points before and after a biofilter
Bild mit Text unten rechts
Determination of NH3 in gas stream
Determination of NH3 in gas stream
MP3 abspielen/stoppen
Bild zum Anklicken
Technical specifications
Device Type
Main unit
Power supply
230 V/50 Hz
Power Input
100 W
Dimensions (L x H x D)
660 x 400 x 250 mm
Weight
9 kg
Protection typeIP66
Measuring points
Max. 2
Dosing volume
0.1 to 100 mL
(depending on application)
Sample pressure
Ambient or pressurized
Typical measuring time
under 5 min (depending on sample)
Measuring range
0.1 to 20000 ppm (2 %)
Gas supply
Internal pump  or
pressure controller

Alarm
Dry contact
Interface
4 to 20 mA output
