Aquamax KF Plus
Reliable Water Content Determination
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 play/stop
reading button icon
Product description
The Aquamax KF Plus series is designed for accurate water content determination according to international standards (ASTM, API, BS, DIN, EI/IP, EN, IEC, ISO), combining the Karl Fischer method with precise coulometry.

Compact, robust, and user-friendly, the Aquamax KF Plus and Aquamax KF Portable titrators feature a tough measuring vessel, intuitive ‘press-go’ operation, and a built-in printer for immediate documentation.
Thanks to their small footprint and fully enclosed components, these instruments save valuable lab space and are easy to transport.
The integrated battery ensures flexible operation outside the lab — ideal for mobile labs, fieldwork, or unstable power environments.

Key Features:
  • Water determination according to international standards
  • Tough and durable measuring system
  • Compact design with enclosed parts for portability
  • Built-in battery for mobile or remote use
  • Easy operation with a press-go keypad and integrated printer
Bild mit Text unten rechts

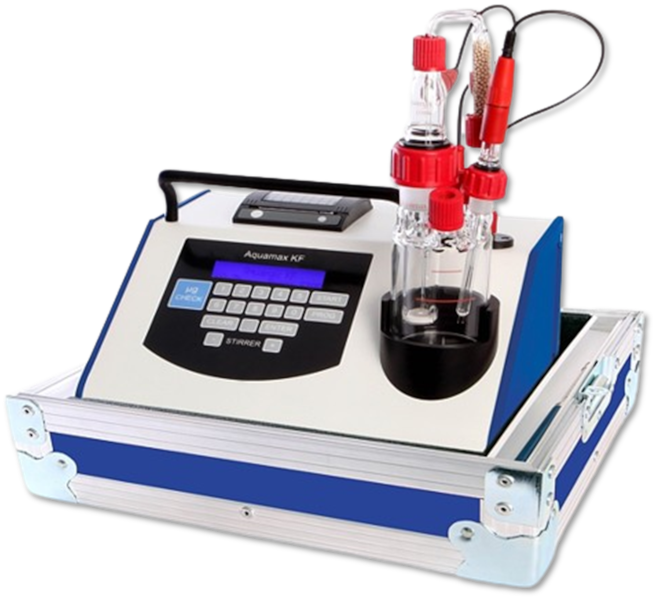

 Aquamax KF PLUS
Aquamax KF PLUS
MP3 play/stop
reading button icon
Standard Conformity
The Aquamax KF Series coulometric Karl Fischer Titrators can be used for the following standard methods:
ASTM D 1364, ASTM D 1533, ASTM D 3401, ASTM D 4928, ASTM 6304, ASTM D 7995, API Ch. 10.9, BS 6829:1.5, DIN 51777, DIN EN 60814, DIN EN ISO 12937, EI / IP 386, EI /IP 438, ISO TC158/SC, ISO 10101-1, ISO 10101-3, ISO 10337
MP3 play/stop
reading button icon
Features and Results
  • Simple operation
  • 10 user programmable methods
  • 1 ppm/100 %
  • Results in ppm, mg/kg, % water, µg water
  • Multi language display & printout
  • Small footprint
  • Integral high speed printer
  • Integral battery
  • Fully portable
  • Low drift cell design
  • Automatically compensated errors (patented technique)
  • Operable without additional PC
MP3 play/stop
reading button icon
Gas tight sampling syringes
Each Aquamax KF Plus/Portable is supplied with a white lettered gas tight sampling syringe and luer needle which has been designed specifically for accurate sampling of oils and fuels.
MP3 play/stop
reading button icon

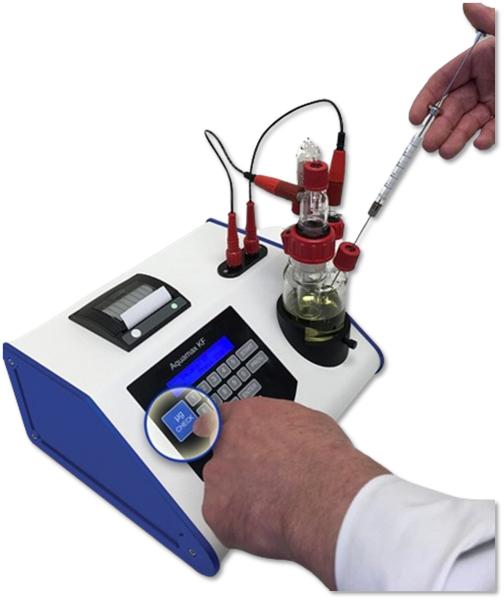

Water check
The µg check button allows the operator to simply press go, inject 1 µL or maybe 10 µL of distilled water (as required by some ASTM methods) and verify if the instrument and reagent are working with in their required specification.

The µg check overrides the programmed calculation and displays/prints out a report of the verification check.

The coulometer then automatically reverts to the pre-programmed setting.
Bild mit Text unten rechts
 Aquamax KF PLUS water check
Aquamax KF PLUS water check
MP3 play/stop
reading button icon

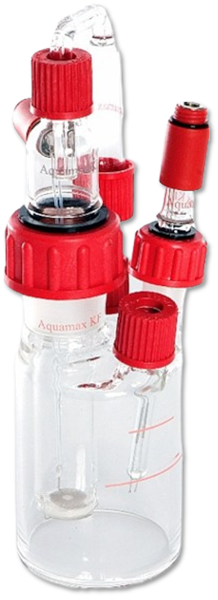

Tough measuring vessel
The unique LDC glassware design is by far the easiest to use and the most robust. The electrode locking system allows the joints to seal completely, without the use of grease or PTFE sleeves, and provides improved baseline stability. Hassle free assembly and disassembly.
Bild mit Text unten rechts
 Aquamax KF PLUS measuring vessel
Aquamax KF PLUS measuring vessel
MP3 play/stop
reading button icon
Where do you need an Aquamax KF
From raw materials to finished products, to preventive maintenance programs, you will find Aquamax KF in the labs, the back of mobile rigs and even on-line as part of an industrial process. If you are testing any of the following processes and samples you may need an Aquamax KF instrument to test you water content!
  • Exploration and Production of Crude Oil and Natural Gases
  • Refining of petroleum products like Bitumen, Fuel Oil, Lubricating Oils, Waxes, Polishes, Diesel Fuel, Jet Fuel, Paraffin, Petrochemicals, Gasoline and Bottled Gas (LPG)
  • Pipeline & Transportation of oils, fuels and petrochemicals
  • Biofuels
  • Plastic & polymer components
  • Pharmaceutical products
  • Extracts like cannabis oil and vaping fluids
Bild mit Text unten rechts
 Aquamax KF PLUS measuring vessel
Aquamax KF PLUS measuring vessel
MP3 play/stop
reading button icon
Technical specifications
Device Type
Main unit
Power supply
230 V/50 Hz or 110 V/60 Hz
Dimensions (L x H x D)
290 x 255 x 130 mm
Internal power supply18 V/DC
Power input
40 W
Weight
3 kg
Titration methodCoulometric
Karl Fischer titration

Electrolysis control
Patented “ACE” control system Gb2370641
End point detection
AC polarisation
End point indication
Visual display/print out/acoustic beep
Titration vessel
Low Drift Cell design, no grease or PTFE sleeves required
Measuring range
Possible 1 µg - 200 mg water Typical 1 µg - 10 mg water
Water content
1 ppm - 100 % water
Max. sensitivity
0.1 µg
Max. titration speed
2 mg per minute
Max. current
350 mA
Drift compensation
Automatically controlled
Precision
10 - 100 µg ± 3 µg; 100 µg - 1 mg ± 3 µg, above 1 mg ± 0.3 %
Start delay time
0 - 30 minutes, user selectable
End delay time
0 - 30 minutes, user selectable
Calculation modes
Weight/weight (W/w)
(user programmable), Weight/dilution ratio (W/K) Volume/density (V/SG) Volume/volume (V/v)

Display format
µg, mg/kg, ppm, %
Print format
µg, mg/kg, ppm, %
Statistics
max, mean, min values up to 99 runs
Method storage
10 user programmable methods
Sample ID number
User programmable
Stirrer speed
Microprocessor controlled
Languages
Multi languages
Calendar/clock
Analysis time & date print out
Battery low indicator
Display & print out indication
Removable data storage
Flash drive
(memory stick) - optional

Data entry
15 key touchpad
Display
40 character alphanumeric
backlight LCD

Printer
42 character high speed thermal printer
