Aquamax KF PRO LPG
Accurate Water Analysis for LPG and LNG
Downloads
Product description
The Aquamax KF PRO LPG fully meets the requirements of ASTM D7995-19 – the Standard Test Method for Total Water in Liquid Butane by Liquefied Gas Sampler and Coulometric Karl Fischer Titration.
Specifically developed for the easy and precise determination of water in liquefied and gaseous samples like LPG and LNG, the Aquamax KF PRO LPG combines the coulometric Karl Fischer method with a unique gas evaporation and dosing system.
Designed for Maximum Performance and Automation
The system includes all essential features for ppm-level water analysis in LPG and gases, including a sulphur removal cartridge to eliminate side reactions from sulphides and H₂S.
Thanks to the innovative sample loop principle, fully automated operation is possible – with up to 125 measurements per day!
All components of the Aquamax KF PRO LPG are completely enclosed, ensuring maximum safety and durability even in the tough conditions of the petroleum industry.
The unique ECH sample loop design offers full flexibility:
- Use it as a fully automated laboratory instrument
- Operate it as a portable field analyzer
- Or integrate it directly into your process as a powerful online monitoring system
Aquamax KF PRO LPG
Standard Conformity
The Aquamax KF Series coulometric Karl Fischer Titrators can be used for the following standard methods:
ASTM D 1364, ASTM D 1533, ASTM D 3401, ASTM D 4928, ASTM D 6304, ASTM D 7995, ASTM E 1064, API Ch. 10.9,
DIN 51777, DIN EN ISO 12937, EI /IP 386, EI / IP 438, IEC 60814, ISO TC 158/SC, ISO 10101-1, ISO 10101-3, ISO 10337
Applications
LPG, LNG:
- Propane, propene, butane, butene, butadiene
- Ethylene oxide
- Chlorinated hydrocarbons, e. g. methylene chloride, ethylene chloride, vinyl chloride
Analysis of refrigerants:
- Halogenated hydrocarbons
Analysis of permanent gases:
- Natural gas
- Technical gases
- Test gas mixtures
Advantages
- Sulphur removal cartridge eliminating the side reactions caused by sulphides/H2S
- No interference calculation required
- Totally automated process, no operator input required for the test
- 250 measurements can be performed in 48 hours
- No balance is required
- Suitable to test all gas types without any calibration or adjustments
- Rinsing process is fully automated
- High sample throughput and long reagent life
- Compact device
Features and Results
- Determination of moisture in liquefied and gaseous samples
- Inlet pressure up to 200 bar/2900 psi
- Determination of pressure in the sample loop
- Automatic pressure regulation
- Transfer line with direct injection
- Automatic rinsing bypass and steps for rinsing
- Measuring cell without diaphragm (only one electrolyte required)
- Setting of application-specific methods
- Sulphur trap eliminating the side reactions caused by sulphides/H2S
- Type of result: µg, ppm (gas volume), Vppm, Mppm, Mol ppm by using the formula generator
Software requirements
Operating system | Windows 10 or higher |
Platform | 32 Bit (x86) |
CPU | 1 Ghz |
RAM | 1 GB |
HDD / SSD | 17 GB |
GPU | DirectX 9 with WDDM 1.0 |
Available languages | German, English |
Number of connections | 1 |
Data connection | RS 232 or USB-Hub |

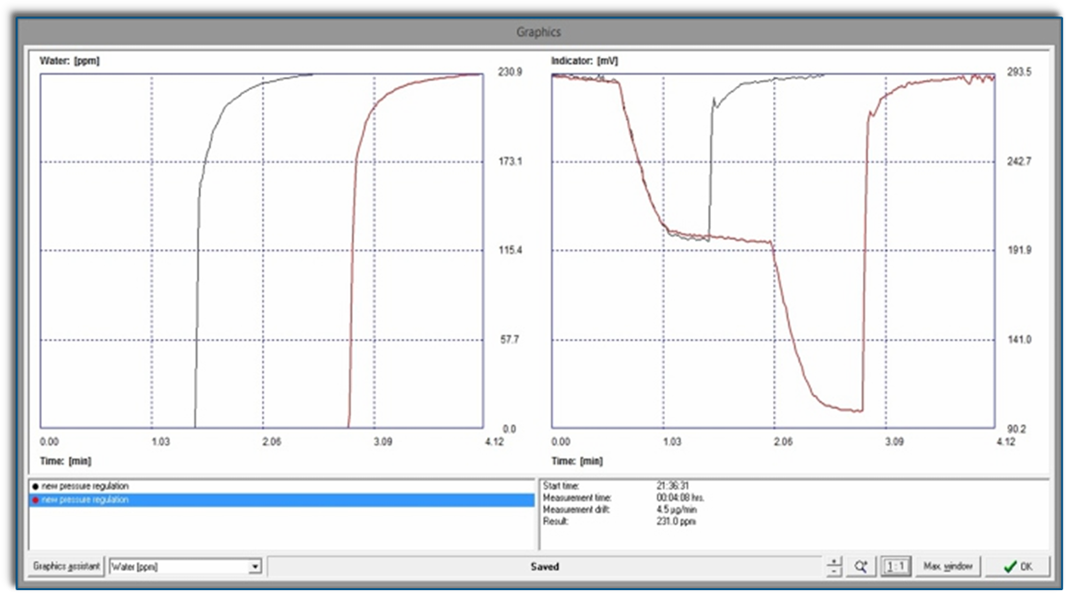

Example for multi-injection of the sample: one-step and two-step dosing process in comparison

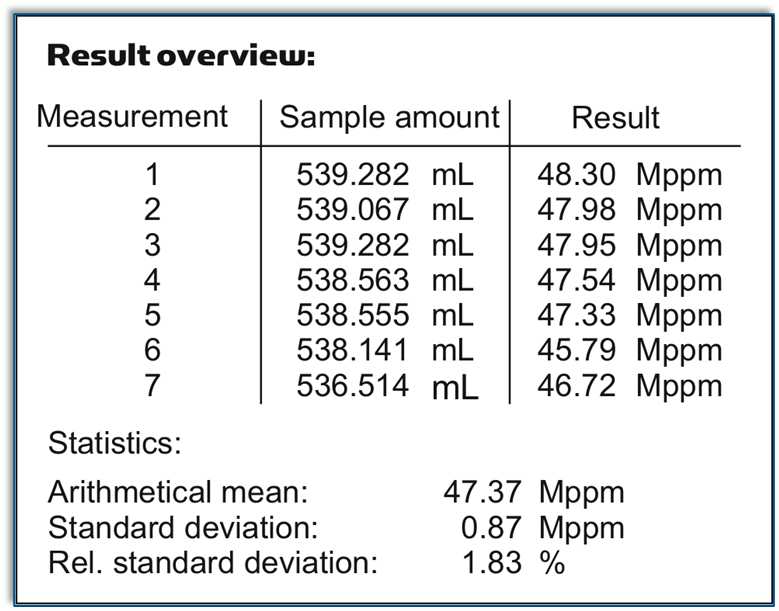

Example of a measurement series with sulphur trap for propane with ethyl mercaptan as odorisation
Technical specifications
Device Type | Main unit |
Power supply | 230 V/50 Hz or 110 V/60 Hz |
Dimensions (L x H x D) | 330 x 480 x 490 mm |
Weight | 24 kg |
Data connection | RS 232 |
Device control | PC Software |
| Measurement method | Coulometric Karl Fischer titration |
| Sample | Pressurized gas sample (LNG, LPG, gas) |
| Sample dosing | Pressurized bottle or directly from the gas line |
| Pressure reducer | Internal (with heating element) |
| Sample loop | 300 mL (gas) |
| Rinsing and dosing | 0 to 15 steps for each, adjustable |
| Measuring range | 1 ppm to 10 % |
| Resolution | 0.1 ppm |
| Detection limit | 1 ppm |
| Typical measuring time | 5 up to 15 min. |
