Aquamax KF PRO OIL
Precise Water Analysis for Petroleum Products

Product description
The Aquamax KF PRO Oil fully complies with ASTM D6304 – the Standard Test Method for Determination of Water in Petroleum Products, Lubricating Oils, and Additives by Coulometric Karl Fischer Titration.
Designed specifically for measuring trace levels of water in oils and fuels, the Aquamax KF PRO Oil eliminates the risk of interference from additives, sulphur, or mercaptans. Thanks to its unique closed-loop system, no additional carrier gas is required.
By directly injecting the sample into the oven, there is no need for a blank value – ensuring highly accurate and reliable results at trace levels.
Discover More About Your Oils with Temperature Ramping
The integrated temperature ramping program – a unique ECH feature – enables detailed analysis of different types of bonded water. This makes the Aquamax KF PRO Oil an ideal solution for R&D, refining, used oil analysis laboratories, and lubricant blending plants.
Even challenging crude oils can be accurately analyzed, distinguishing between free and bonded water.
Built with fully enclosed components, the Aquamax KF PRO Oil is robust and safe, designed to withstand the demanding conditions of the petroleum industry.
Thanks to the ECH technology, reagent life is significantly extended, maximizing reagent efficiency and reducing operating costs.

Aquamax KF PRO OIL

Standard Conformity
The Aquamax KF Series coulometric Karl Fischer Titrators can be used for the following standard methods:
ASTM D 1364, ASTM D 1533, ASTM D 3401, ASTM D 4928, ASTM 6304, ASTM D 6869, ASTM D 7995. ASTM E1064, API Ch. 10.9, BS 6829:1.5
DIN 51777, DIN EN 60814, DIN EN ISO 12937, EI / IP 386, EI /IP 438, IEC 60814, ISO TC158/SC, ISO 10101-1, ISO 10101-3, ISO 10337

Applications
- Transformer oils
- Hydraulic oils
- Engine oils
- Gear oils
- Crude oils
- Fuel oils
- Gasoline
- Diesel
- A1 Jet fuel
- Military jet fuel
- Bio fuel
- Petroleum products
- Insulating oils
- Silicone oils
- Lubricating oils
- Biopetroleum
- Biological oils

Advantages
- Closed loop principle does not allow methanol to evaporate from the KF solvent
- Reagent capacity is used completely
- Additive and Sulphur side reactions minimized
- By using of temperature programs it is possible to separate free and chemically bonded water
- Temperature ramping program allows you to distinguish between various types of bonded water
- No blank value meaning true ppm accuracy
- Aquamax KF PRO Oil can be used in the laboratory or used as part of a mobile lab when taking a measurement from the sample point is critical
- Compact and rugged device

Features and Results
Water extraction of the samples at temperatures 35 °C up to 250 °C, e. g
- Constant temperature
- Individually set up temperature programsFreely selectable temperature ramp
- Time-controlled temperature programs for step-by-step heating
- Type of result: µg, µg/L, mg/L, mg/kg, ppm, %, by using the formula generator

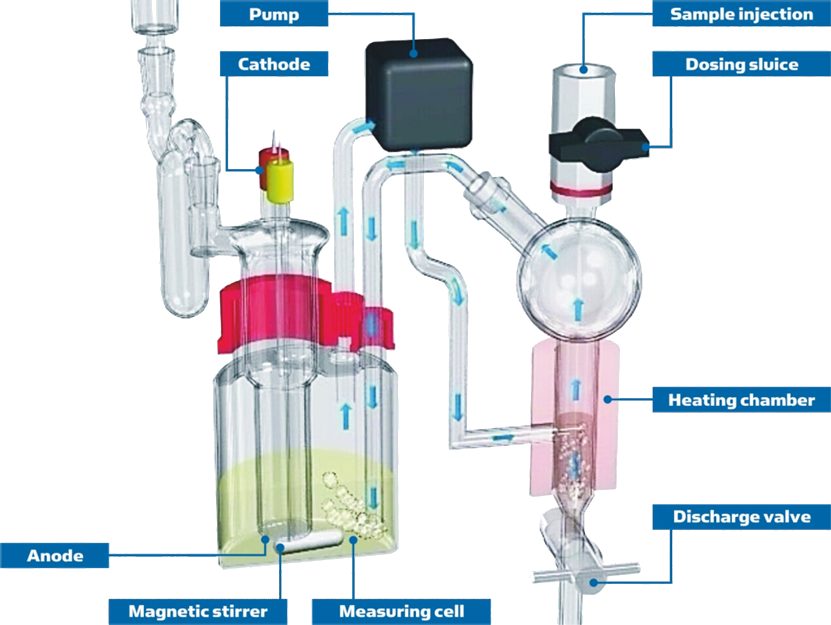

Closed-loop carrier gas circulation

Software requirements
Operating system | Windows 10 or higher |
Platform | 32 Bit (x86) |
CPU | 1 Ghz |
RAM | 1 GB |
HDD / SSD | 17 GB |
GPU | DirectX 9 with WDDM 1.0 |
Available languages | German, English |
Number of connections | 1 |
Data connection | RS 232 or USB-Hub |

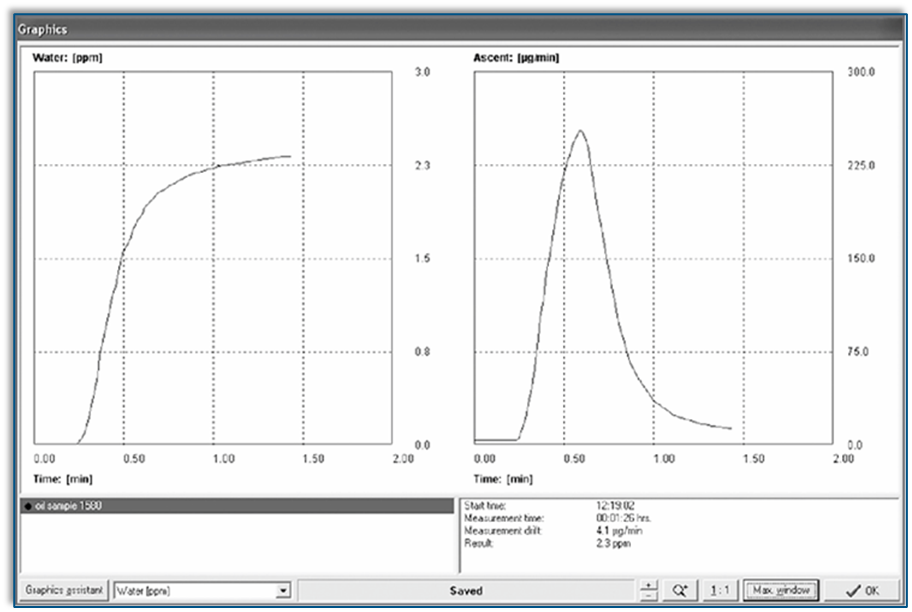

Dual Graph Display shows live result and titration profile

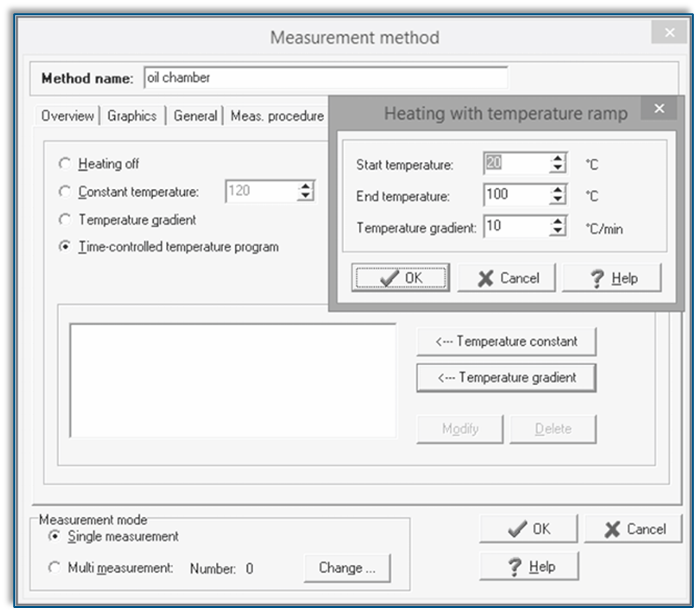

Preparation of measurement with temperature ramp

Technical specifications
Device Type | Main unit |
Power supply | 230 V/50 Hz or 110 V/60 Hz |
Dimensions (L x H x D) | 330 x 480 x 390 mm |
Weight | 17 kg |
Data connection | RS 232 |
Device control | PC Software |
Measurement method | Coulometric Karl Fischer titration |
Sample administration | Manually with syringe |
Sample amount | 0.01 to 20 mL |
Heating temperature | 35 to 250 °C, isothermal or with temperature program |
Blank value | 0 µg |
Measuring range | 0.0001 to 100 % |
