GärOnA
Fully Automated Fermentation Test System for Biogas Research
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 play/stop
reading button icon
Product description
Meaningful fermentation tests are essential for efficient biogas production. Through these tests, the microbiological processes and degradation characteristics of new substrates can be described and optimized. The procedures for fermentation tests are specified, among others, in the VDI Guideline 4630.

With the GärOnA system, both batch and continuous fermentation tests can now be carried out fully automatically.

The system minimizes the pressure range in the fermentation vessels, positively influencing the solubility equilibrium of methane, carbon dioxide, and other gas components in the liquid phase.

During depressurization, a biogas sample from a vessel is automatically fed to a gas chromatograph for detailed analysis. This setup enables precise tracking of methane production changes and the time course of methane formation rates.

The fully automated GärOnA laboratory system makes it exceptionally easy to conduct exact and high-content investigations of anaerobic digestion processes, providing comprehensive, high-quality data for biogas research and substrate development.

Key Features:
  • Fully automated batch and continuous fermentation testing
  • Developed according to VDI Guideline 4630
  • Minimized vessel pressure range for improved gas solubility
  • Automated biogas sampling and gas chromatograph analysis
  • Measurement of methane production rates over time
  • High-precision anaerobic digestion investigations
  • Rich information content for biogas research and process optimization
Bild mit Text unten rechts
 gaerona
GärOnA
Advantages
MP3 play/stop
reading button icon

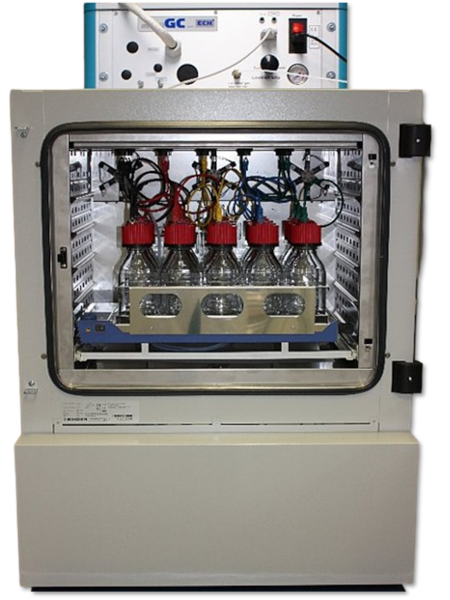

  • Compact and portable lab analyzer
  • Fully automated and controlled fermentation vessels
  • Pressure measurement for determination of formed biogas quantity
  • On a roll-off magnetic stirrer 15 measuring stations and 1 measuring cell as a reference
  • Controlled depressurization via valve manifolds
  • Determination of different gas components with integrated gas chromatograph (CO2, CH4, trace gases)
  • Waterless incubation by an incubator unit
  • Compensation of temperature and air pressure changes for accurate data evaluation
  • 2000 programmable runs on the Online-GC
MP3 play/stop
reading button icon
Software requirements
Operating system
Windows 10 or higher
Platform
32 Bit (x86)
CPU
1 Ghz
RAM
1 GB
HDD / SSD
17 GB
GPU
DirectX 9 with WDDM 1.0
Available languages
German, English
Number of connections
1
Data connection
RS 232 or USB-Hub
The system GärOnA has been developped in cooperation between ECH and GMBU.
