GasExtractor
Fully Automated Vacuum Degassing System for Oils and Viscous Liquids
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 play/stop
reading button icon
Product description
The GasExtractor is a fully automated vacuum degassing unit designed for extracting gases from oil and other highly viscous liquids according to international standards. It enables fast and precise determination of the total gas content by accurately measuring the pressure increase during the degassing process.

The GasExtractor provides a reliable basis for further identification of gas compounds and can be seamlessly connected to standard gas chromatographs for advanced analysis.

Equipped with a powerful four-stage membrane pump, the GasExtractor generates vacuum without the use of mercury, offering a safe and modern alternative to traditional Toepler pumps.

For enhanced flexibility, the system can be upgraded with an autosampler capable of handling various syringe sizes for oil sample preparation.

Key Features:
  • Fully automated vacuum degassing according to international standards
  • Fast and precise total gas content determination
  • Easy connection to standard gas chromatographs
  • Mercury-free vacuum generation with a four-stage membrane pump
  • Optional autosampler for different syringe sizes
  • Ideal for oil and high-viscosity liquid analysis
Bild mit Text unten rechts

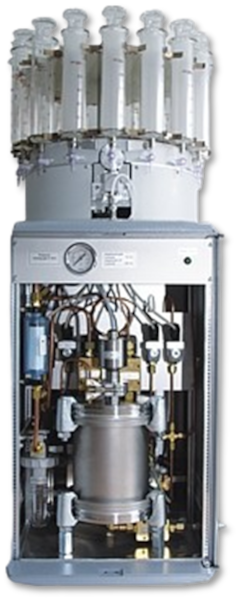

 gasextractor
GasExtractor
MP3 play/stop
reading button icon
Applications
  • Insulating oil
  • Mineral oil
  • Lubrication fluids
  • Engine Oil
  • Gear oil
  • Hydraulic fluids
  • Biodiesel
MP3 play/stop
reading button icon
Advantages
  • Complete measuring device for vacuum degassing
  • Extraction of gases from oils according to international standard regulations
  • Working without mercury
  • Fast determination of the total gas content
  • Suitable for linking with a gas chromatograph
  • Basis for quantitative determination of the dissolved gases
  • Powerful four stage membrane pump
  • Digital pressure measurement
  • Valve for automatic oil feed and drain
  • Degassing Pressure sensor
  • Gas sampling Solenoid valve
  • Solenoid valve Solenoid valve Oil outlet
  • Vacuum gasextractor scheme
  • Automatic procedure with vacuum-tight solenoid valves and fittings
  • Uncontaminated degassing and transfer to gaschromatograph
  • Completed data acquisition- and date evaluation system
MP3 play/stop
reading button icon
Features and Results
  • Evacuation of the degassing vessel
  • Automatic dosing of the oil sample
  • Determination of the pressure increasing for calculating the total gas content
  • Separation of the extracted gas via vacuum pump
  • Automatic transfer of the gas sample into the gas chromatograph
  • Removal of oil sample after analysis by means of inert rinsing gas
MP3 play/stop
reading button icon
Software requirements
Operating system
Windows 10 or higher
Platform
32 Bit (x86)
CPU
1 Ghz
RAM
1 GB
HDD / SSD
17 GB
GPU
DirectX 9 with WDDM 1.0
Available languages
German, English
Number of connections
1
Data connection
RS 232 or USB-Hub
MP3 play/stop
reading button icon
Technical specifications
Device Type
Main unit
Power supply
230 V/50 Hz or 110 V/60 Hz
Power input200 W
Dimensions (L x H x D)
330 x 520 x 495 mm
Weight
17 kg
Data connection
RS 232
Device control
PC Software
Pump rate2,0 m3/h
Vacuum sensor
Measuring range:
0.01 to 170 mbar,
regardless of the gas
Accuracy2% FS
Start vacuum
Under 0.8 mbar
Working range
0 to 150 mbar
Resolution
0.01 mbar
Sample volume20 to 300 ml
Total gas contentOver 0.05 %
Conditioning timeUnder 5 minutes
Typical degassing timeUnder 2 minutes
Gas transfer to GCManually or automatically
