MobilGC for cooling gases
Portable High-Precision Analyzer for Cooling Gases
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 play/stop
reading button icon
Product description
The MobilGC is a portable gas analyzer designed for the rapid, on-site measurement of cooling gases in refrigerated containers (reefers). It delivers the same high accuracy as the gold standard tests performed by external service laboratories.

MobilGC accurately distinguishes between the legal refrigerant R-134a and illegal substances such as R-22, R-40, R-142b, and others. It also detects the highly dangerous breakdown product of R-40, tri-methyl-aluminum (TMA).

Even if TMA degrades during sampling into methane gas, the MobilGC precisely measures the resulting methane concentration to infer the original TMA level.

All target gases are detected simultaneously in a single 8-minute measurement with a detection accuracy down to 1 ppm — providing laboratory-grade results at a fraction of the cost and time of traditional testing.

Key Features:
  • Portable and easy-to-use gas analyzer for reefer inspections
  • Gold standard laboratory accuracy in the field
  • Differentiates legal refrigerants from banned substances
  • Detects hazardous breakdown products like TMA
  • Compensates for TMA degradation by measuring methane
  • Full analysis completed in just 8 minutes
  • Detection sensitivity up to 1 ppm
Bild mit Text unten rechts

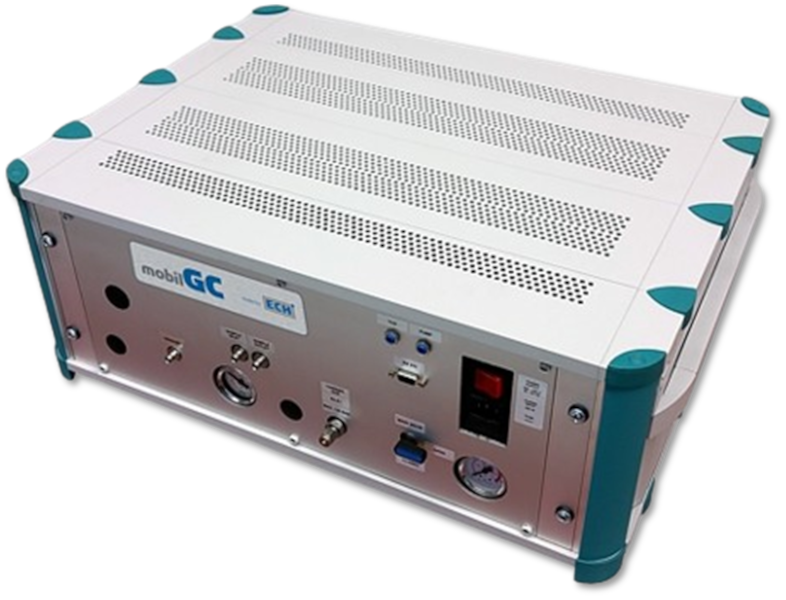

MobilGC for cooling gases
MobilGC for cooling gases
MP3 play/stop
reading button icon
Applications
  • Cooling gas analysis
  • Emission and immission measurements
  • On-site-analysis, process control, online monitoring
  • Suitable for continuous limit value monitoring of total concentration of hydrocarbon in gas samples
  • Allows to link with gas extraction techniques, e. g. for gas in oil analysis
MP3 play/stop
reading button icon
Advantages
The MobilGC for cooling gases is a robust instrument for
mobile use in a harbour situation.

The software of the device is installed on a mobile
computer and designed in a user friendly way.

The combination of accuracy, speed and mobility gives
you the possibility to act in time, without delays.
  • R 40 (Methyl chloride)
  • R 134 a (1,1,1,2 Tetra fluor ethane)
  • R 22 (Chlordifluor methane)
  • R 142 b (1-Chlor-1, 1-difluor ethane)
  • TMA (Tri-Methyl- Aluminium)
  • Methane (methane is not measured by GC/MS!)
Bild mit Text unten rechts

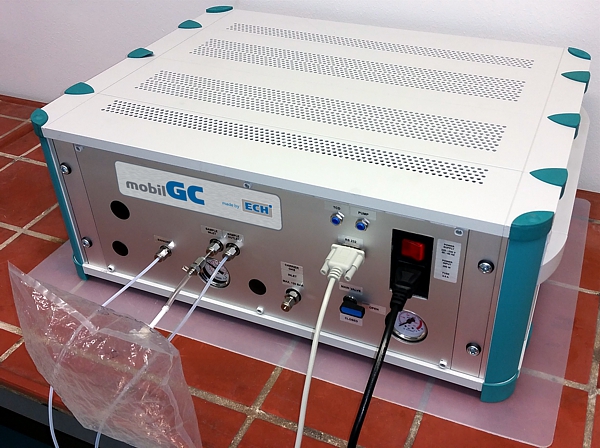

MobilGC with connected gas sampling bag
MobilGC with connected gas sampling bag
MP3 play/stop
reading button icon
Software requirements
Operating system
Windows 10 or higher
Platform
32 Bit (x86)
CPU
1 Ghz
RAM
1 GB
HDD / SSD
17 GB
GPU
DirectX 9 with WDDM 1.0
Available languages
German, English
Number of connections
1
Data connection
RS 232 or USB-Hub
MP3 play/stop
reading button icon
Technical specifications
Device Type
Main unit
Power supply
230 V/50 Hz
Dimensions (L x H x D)
560 x 320 x 460 mm
Weight
20 kg
Data connection
RS 232
Device control
PC Software
Working range1 ppm to 100 %
Resolution0.01 ppm
Sample volume0.01 to 1 mL
Measurement duration8 minutes
