MobilGC for LPG
Reliable On-Site Gas Chromatography for LPG Analysis
Downloads
Product description
The MobilGC is a gas-phase chromatograph designed for ease of use and robust field applications. When combined with the Sampling Box, it enables precise gas composition measurements according to ASTM standards D 2163 (LPG analysis) and D 2598 (evaluation method).
Thanks to its rugged case and internal gas supply, the MobilGC allows reliable LPG analysis directly at the measurement site. The system offers measurement sensitivity that meets the ASTM requirements, covering a range from 0.1% to 100% for clean gas components.
Sample preparation is simple: the Sampling Box is connected to the LPG cylinder or sampling line and to a sampling bag. A 5 mL sample of liquefied gas is expanded into the bag. This method also enables the preparation of gas mixtures, for instance by adding further components for calibration purposes.
For analysis, the sampling bag is connected directly to the MobilGC. The gas sample is separated using a heated column. With MobilGC’s user-friendly software, chromatograms can be quickly and easily evaluated according to standards. The integrated expert evaluation system presents results both as concentrations and as total MON numbers, or MON values for each individual component.
Key Features:
- Inorganic salts
- Building materials
- Metals and alloys
- Molecular sieves
- Oxides/hydroxides
- Cement
MobilGC for LPG
Standard Conformity
ASTM D 2163, ASTM D 2598
Applications
- Determination of LPG composition
- Measurement of Motor octane number (MON)
- Check purity of LPG (content of pentane)
- Analysis of refrigerants
- Production and measurement of calibration mixtures

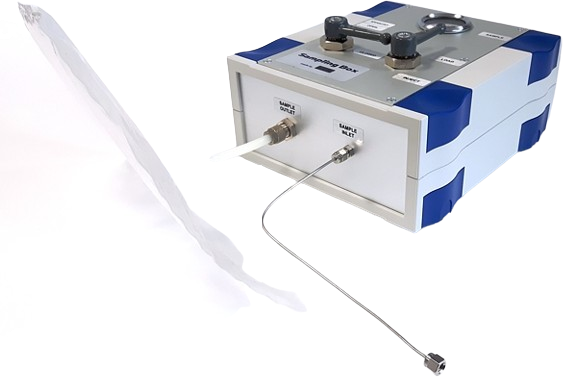

Sampling Box for transformation of liquefied gas into gaseous samples
Advantages
- Simple sample preparation with Sampling Box
- Sample loop with 5 ml volume (also other sizes applicable)
- MobilGC with internal carrier gas supply for on-site analysis
- With up to 80 operating hours
- Easy refilling of gas supply
- Measurement sensitivity 0.1 to 100 %
- Result as concentration, as total MON number or as MON value for each component
MobilGC with thermal conductivity detector (TCD)
- Robust device with simple handling
- Only one gas type required
- Helium as carrier gas (according to standard ASTM D 2163)
- Simple sample handling
MobilGC with connected gas sampling bag
Software requirements
Operating system | Windows 10 or higher |
Platform | 32 Bit (x86) |
CPU | 1 Ghz |
RAM | 1 GB |
HDD / SSD | 17 GB |
GPU | DirectX 9 with WDDM 1.0 |
Available languages | German, English |
Number of connections | 1 |
Data connection | RS 232 or USB-Hub |
Technical specifications for MobilCG
Device Type | Main unit |
Power supply | 230 V/50 Hz |
| Power input | Max. 240 W |
Dimensions (L x H x D) | 560 x 460 x 320 mm |
Weight | 23 kg |
Data connection | RS 232 |
Device control | PC Software |
| Resolution | 0.1 to 100 % |
| Resolution | 0.01 % |
| Typical duration | 2 to 30 min (depending on sample) |
| Temperature of column oven | Max. 250 °C, controllable with individual temperature program |
Technical specifications
for Sampling Box
Device Type | Expansions module |
| Sample volume | Sample loop with 5 ml volume (also other sizes applicable) |
| Sample pressure | Max. 10 bar |
Dimensions (L x H x D) | 170 x 90 x 200 mm |
Weight | 1 kg |
