MobilGC 2
The Flexible Gas Chromatograph for Field, Process, and Laboratory Applications
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 play/stop
reading button icon
Product description
MobilGC 2 – The Flexible Gas Chromatograph for Field, Process, and Laboratory Applications.

The MobilGC 2 is a user-friendly gas chromatograph designed for versatile applications.

Whether for on-site measurements, online process analysis, or laboratory use, the integrated gas supply makes the MobilGC 2 ready for operation anywhere, anytime.

Equipped with two powerful detectors (FID and TCD/WLD), the system offers flexibility to tackle a wide range of analytical challenges.

It supports the use of standard capillary columns as well as packed and micro-packed columns, with each column individually heated and controlled by separate temperature programs.

Samples can be introduced manually or automatically via a built-in suction pump into a sample loop.

With the intuitive control and integration software, fast and precise analyses can be performed and evaluated in various ways. Automated online measurements are also fully supported.

Key Benefits:
  • Integrated gas supply for maximum mobility
  • Dual detectors (FID, TCD/WLD) for flexible analysis
  • Compatibility with capillary, packed, and micro-packed columns
  • Individually programmable column temperature control
  • Manual or automatic sample introduction
  • User-friendly control and evaluation software
  • Ideal for field analysis, process monitoring, and laboratory applications
Bild mit Text unten rechts

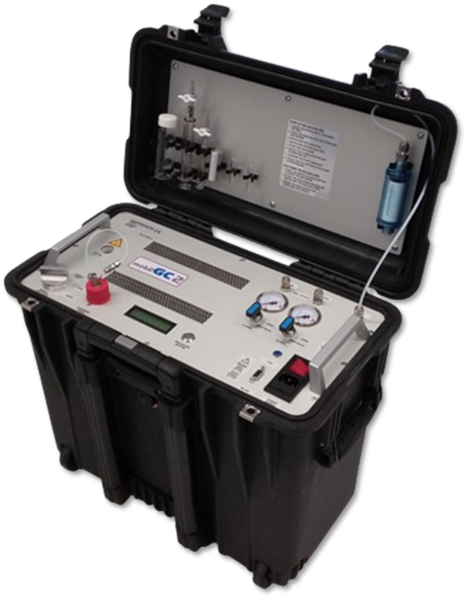

 MobilGC2
MobilGC2
MP3 play/stop
reading button icon
Applications
  • Emission- and immission measurements
  • On-site-analysis, process control, online monitoring
  • Suitable for continuous limit value monitoring of total concentration of hydrocarbons in gas samples
  • Integrated gas extraction technique, specifically for headspace-technique or gas-in-oil-analysis
MP3 play/stop
reading button icon
Advantages
  • Integrated carrier and fuel gas supply for one week (40 operating hours)
  • One or two commercially available capillary columns (packed or micro-packed separation columns)
  • Detectors (FID, TCD) with high detection sensitivity and digital data acquisition
  • Comfortable software with various measuring methods for device control
  • Hardware adaptation to different sample types
  • Fully automatic measurement processes and simple calibration procedure
  • Special gas-in-oil analysis with vacuum/partial vacuum degassing
MP3 play/stop
reading button icon
Features and Results
  • Individual, column-specific heating (isothermal or with selectable temperature gradient up to 250 °C)
  • Application of coupled column techniques
  • Carrier gas argon, nitrogen, helium or hydrogen
  • Methanizer for quantitative converting of CO and CO2 into methane
  • Automatic evaluation of the chromatograms obtained (single peak and sum peak integration)
  • Application-dependent expert systems and evaluation procedures
  • Process monitoring by means of overview and detailed measurements
Bild mit Text unten rechts
 MobilGC2
MobilGC2
MP3 play/stop
reading button icon
Software requirements
Operating system
Windows 10 or higher
Platform
32 Bit (x86)
CPU
1 Ghz
RAM
1 GB
HDD / SSD
17 GB
GPU
DirectX 9 with WDDM 1.0
Available languages
German, English
Number of connections
1
Data connection
RS 232 or USB-Hub
MP3 play/stop
reading button icon
Technical specifications
Device Type
Main unit
Power supply
230 V/50 Hz
Dimensions (L x H x D)
500 x 457 x 305 mm
Weight
23 kg
Data connection
RS 232
Device control
PC Software
Carrier gas
Argon, nitrogen, helium or hydrogen
Internal gas supply
For one week (40 operating hours)
Detectors
FID, TCD
Sample dosing
Manually via syringe or automatic priming pump
Sample volume
1 mL gas sample or 10 mL oil sample
Number of columns
Max. 2 (types selectable)
Temperature of column heating
Max. 250 °C, individually adjustable with temperature programme
Working range
1 ppm to 100 %
Resolution
0.1 ppm
Typical measuring time
2 to 30 min (depending on the sample)
