Sulfimax GX lab
Precise Determination of Hydrogen Sulfide in Liquids and Gases
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 play/stop
reading button icon
Product description
The Sulfimax GX lab is the innovative laboratory device for fast and precise determination of hydrogen sulfide (H2S) and volatile sulfides in liquids and gases.

Samples can be dosed directly without complex preparation – either manually via syringe or automatically using the optional autosampler. Thanks to efficient gas extraction, all H2S is completely expelled from the sample. Interferences caused by the sample matrix are virtually eliminated.

The released H2S gas is transferred to a highly sensitive sensor, capable of detecting concentrations from 0.01 to 10,000 ppm with outstanding accuracy. A typical measurement takes approximately 5 minutes, depending on sample composition.

With the optionally available H2S Headspace Module, the Sulfimax GX Lab can be upgraded to also measure solid and semi-solid samples easily and efficiently.

Key Benefits:
  • Direct dosing without sample preparation
  • High-precision detection from 0.01 to 10,000 ppm H2S
  • Fast measurement times starting from 5 minutes
  • Minimal influence from sample matrix
  • Expandable for solids and semi-solids
Mehrere 360° Viewer mit Touch
MP3 play/stop
reading button icon
Standard Conformity
The Sulfimax GX Lab fulfils the requirements of  the standard DIN 38405-27: German standard  methods for the examination of water, waste  water and sludge - Anions (group D) - Part 27:  Determination of sulphide by  gas extraction method (D 27), .
DIN 38405-27, IP 570 (B), ASTM D7621
MP3 play/stop
reading button icon
Applications
  • Water, drinking water, surface water
  • Municipal wastewater
  • Industrial wastewater
  • Monitoring of landfill-leachate
  • Gas analysis (e. g. LNG, LPG)
  • H2S in hydrocarbon mixtures
  • Investigation of technical and pharmaceutical products (e. g. storage stability)
  • Quality management
Mehrere 360° Viewer mit Touch
MP3 play/stop
reading button icon
Advantages
  • Analysis of the original sample
  • No sample preparation
  • Dosing manually or optional fully automatic
  • Minimized cross sensitivity through the indirect method
MP3 play/stop
reading button icon
Features and Results
  • Complete separation of H2S from the sample by effective gas extraction
  • Simple calibration
  • Software: simple, clear, intuitive
  • Definition of own methods for device control
  • Typical measuring time 5 min (depending on sample properties)
Bild mit Text unten rechts

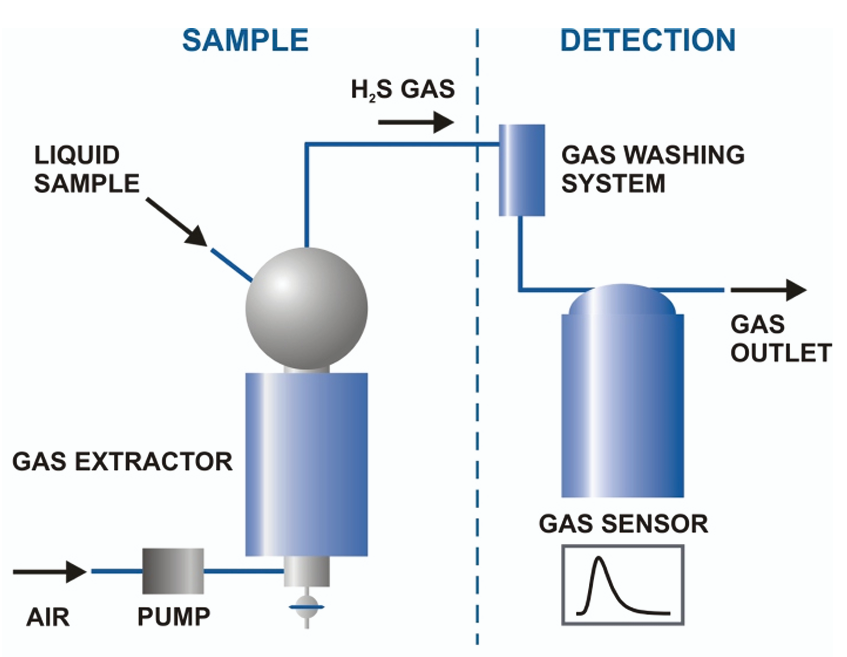

functional_scheme_of_the_analysis_system
Functional scheme of the analysis system
MP3 play/stop
reading button icon
Software requirements
Operating system
Windows 10 or higher
Platform
32 Bit (x86)
CPU
1 Ghz
RAM
1 GB
HDD / SSD
17 GB
GPU
DirectX 9 with WDDM 1.0
Available languages
German, English
Number of connections
1
Data connection
RS 232 or USB-Hub
Bild mit Text unten rechts

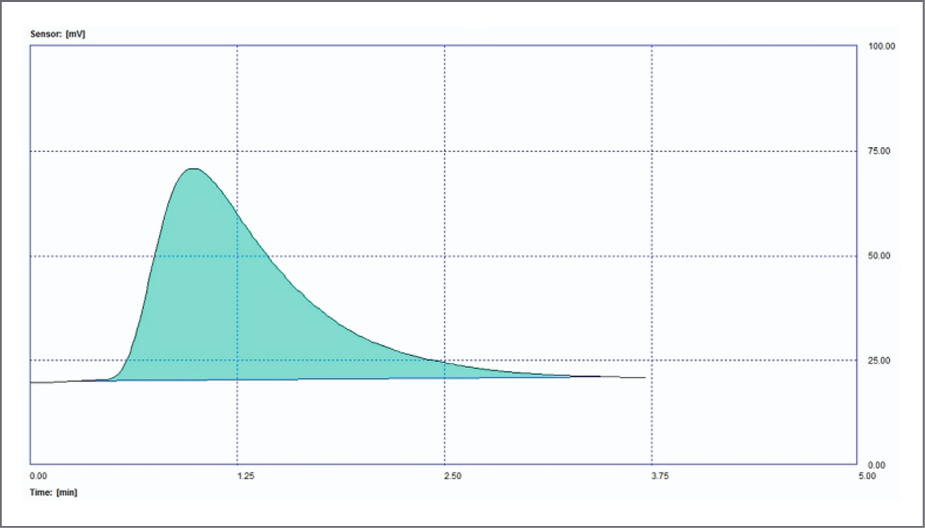

Typical measurement - automatic peak analysis / interpretation
Typical measurement - automatic peak analysis / interpretation
Bild mit Text unten rechts

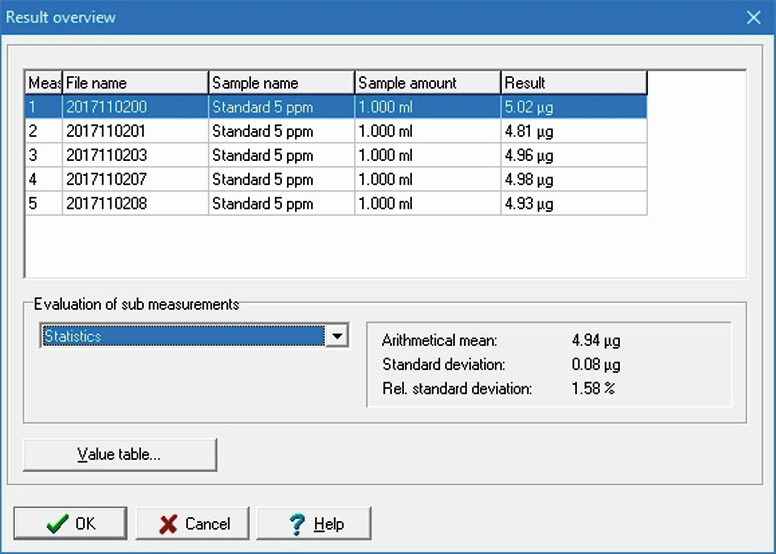

Table of results of a multi measurement
Table of results of a multi measurement
MP3 play/stop
reading button icon
Technical specifications
Device Type
Main unit
Power supply
230 V/50 Hz or 110 V/60 Hz
Power Input
150 W
Dimensions (L x H x D)
480 x 390 x 290 mm
Weight
11 kg
Data connection
RS 232
Device control
PC Software
Measuring range
0.01 to 10.000 ppm
Resolution
0.1 µg abs., output signal linear
Sample volume
0.01 to 20 mL
Gas flow
Up to 50 L/h
