Sulfimax GX online WATER
Continuous H2S Monitoring in Wastewater and Process Streams
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 play/stop
reading button icon
Product description
The Sulfimax GX online WATER continuously measures hydrogen sulfide (H2S) and sulfides in wastewater and other aqueous samples quickly and accurately. This allows for timely and on-demand intervention in process streams and wastewater treatment operations.

Effective gas extraction completely expels H2S from the sample, with virtually no interference from the sample matrix. The released H2S gas is transferred to a highly sensitive sensor capable of detecting concentrations from 0.01 to 1000 ppm.

Typical measurement times range from 5 to 15 minutes, depending on the sample composition.

With the Sulfimax GX online WATER, even challenging industrial wastewater contaminated with hydrocarbons, ammonia, or exhibiting basic pH values can be reproducibly monitored.

Sample aspiration, all rinsing steps, and return to the pipeline system are performed automatically. Configuration adjustments and result reading are possible via remote access, and measured values can be transmitted to on-site alarm systems through digital and analog outputs.

Key Features:
  • Continuous H2S and sulfide monitoring in aqueous samples
  • Effective gas extraction for high accuracy
  • Wide detection range: 0.01 to 1000 ppm
  • Reliable monitoring of contaminated industrial wastewater
  • Full automation of sampling, rinsing, and reintegration
  • Remote access for configuration and data retrieval
  • Digital and analog outputs for alarm integration
Bild mit Text unten rechts
Sulfimax GX online WATER
Sulfimax GX online WATER
MP3 play/stop
reading button icon
Standard Conformity
The Sulfimax GX online WATER as ATEX compliant version is suitable for use in ATEX zone 1 (gas) according to DIN EN IEC 60079-2.
MP3 play/stop
reading button icon
Applications
  • Online acquisition of the current sulphide concentration
  • Environmental analysis, e. g.- Waste water analysis for control systems (pump sump, free level or pressure water pipe)
    - Landfill leachate monitoring
    - Industrial sewage treatment plants
    - Municipal sewage treatment plants
Bild mit Text unten rechts
Gas drying
Gas drying
MP3 play/stop
reading button icon
Advantages
  • Automatic sample dosing
  • Hardly any cross-sensitivities due to indirect method
  • Output 4 to 20 mA for integration of the H2S signal into the control system
  • Short measuring intervals allow fast reaction to changes
  • Low maintenance requirements
MP3 play/stop
reading button icon
Features and Results
  • Detection of the true H2S content directly in the liquid phase and thus independent of weather conditions (even in strongly basic samples)
  • Simple calibration
  • Simple, clear software
  • No cross-contamination due to self-cleaning between measurements
  • Long sensor life due to integrated regeneration processes
MP3 play/stop
reading button icon
Software requirements
Operating system
Windows 10 or higher
Platform
32 Bit (x86)
CPU
1 Ghz
RAM
1 GB
HDD
17 GB
GPU
DirectX 9 with WDDM 1.0
Available languages
German, English
PC and SoftwareBuilt into the device
Bild mit Text unten rechts
Winter operation with low events
Winter operation with low events
Bild mit Text unten rechts
Summer operation with consistently higher but uniform H2S development
Summer operation with consistently higher but uniform H2S development
Bild mit Text unten rechts

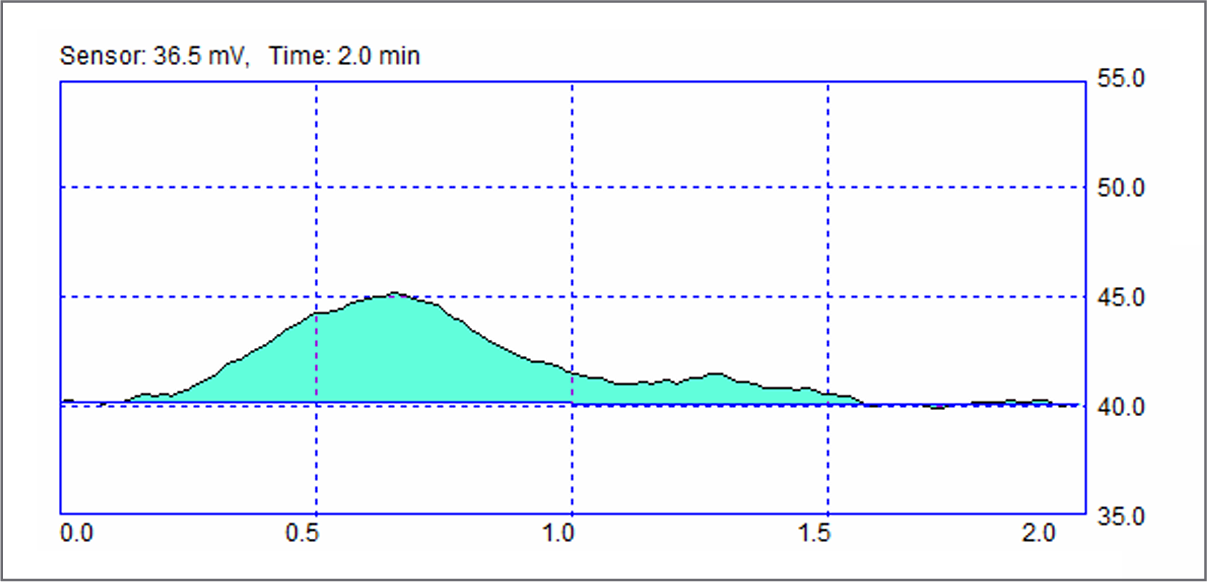

 Determination of volatile H2S from bitumen by headspace technique
Typical measurement - automatic peak analysis / interpretation
MP3 play/stop
reading button icon
Technical specifications
Device Type
Main unit
Power supply
230 V/50 Hz
Power Input
250 W
Dimensions (L x H x D)
600 x 720 x 370 mm
Weight
53 kg
Protection type
IP54
Sample dosingVia transfer line
(up to 30 m long, from up to 5 m depth)

Sample volume
0.01 to 20 mL
Gas supply
Internal pump or
compressed air

Gas flow
Up to 50 L/h
Typical duration
5 to 15 min
(depending on the sample)

Range
0.01 to 1000 ppm
Resolution
0.1 µg abs., output signal linear
