Titramax VT Bromine
Bromine Index and Bromine Number Determination
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 play/stop
reading button icon
Product description
The Titramax VT Bromine is designed for the precise determination of the Bromine Index and Bromine Number, which express the trace amounts of unsaturated constituents in hydrocarbons and oils. These values are essential for assessing parameters critical to the further processing of petroleum products.

The measurement is based on a potentiometric titration method in an anhydrous medium. Once the sample is dosed into the reagent, titration with the titrant begins automatically. The user only needs to input the sample weight into the menu. The system then performs the titration autonomously until the endpoint is detected.

At the end of the measurement, results are displayed either as mg Br2/100 g (Bromine Index) or g Br2/100 g (Bromine Number).
Bild mit Text unten rechts

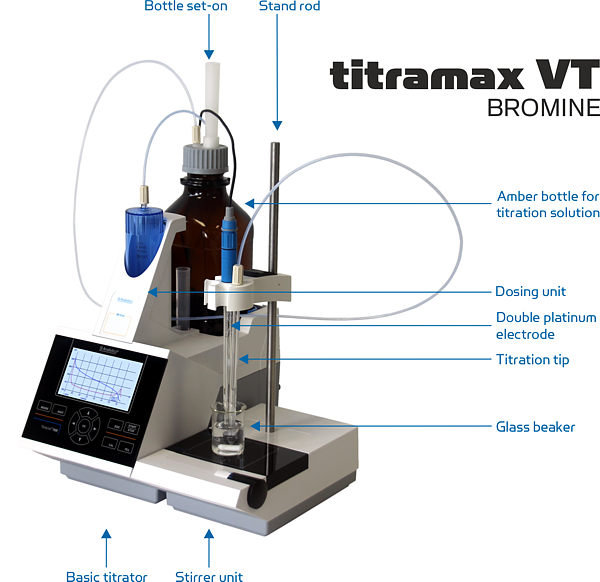

Titramax VT Bromine
Titramax VT Bromine
MP3 play/stop
reading button icon
Standard Conformity
ASTM D 1159, ASTM D 2710, ASTM D 5776.
MP3 play/stop
reading button icon
Applications
The titrator is suitable for analysis of
  • petroleum distillates
  • gasoline (including leaded, unleaded, oxygenated fuels)
  • kerosine
  • distillates in the gas oil range
  • commercial propylene trimer and tetramer
  • butene dimer
  • mixed nonenes, octenes, heptenes
  • olefinfree hydrocarbons or mixtures
MP3 play/stop
reading button icon
Advantages
  • Complete measuring system for the determination of Bromine Index or Bromine Number
  • Fully-automatic volumetric titration
  • Precise adjustment of the titration parameters by control algorithms
  • Preset measurement method allows an immediate start
  • The result output can be adjusted to your needs by using a formula generator
Bild mit Text unten rechts

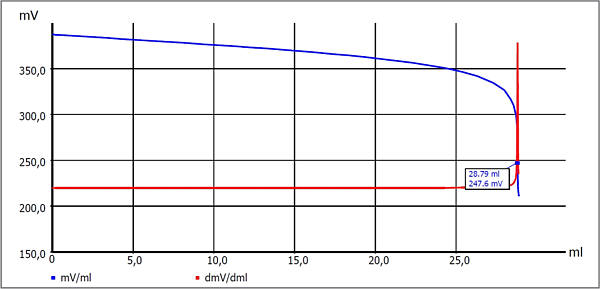

Titration graph of an oil sample
Titration graph of an oil sample
MP3 play/stop
reading button icon
Features and Results
  • an automatic volumetric titrator with potentiometric indication
  • a titration vessel with stirrer unit
The determination of Bromine Index or Bromine Number is based on
  • a potentiometric titration in an anhydrous medium
  • a precise indication by a double platinum electrode, which is stable over long periods
Steps of the analysis

  1. Determination of the blank value
  2. Standardization of the titration solution
  3. Titration of the sample
Bild mit Text unten rechts
Titramax VT Bromine
Titramax VT Bromine
MP3 play/stop
reading button icon
Technical specifications
Device Type
Main unit
Power supply
External plug-in power supply 100 - 240 V, 50/60 Hz
Power input
30 VA
Stirrer connection
12 V DC out, 500 mA
Dimensions (L x H x D)
300 x 450 x 300 mm
Weight
3,5 kg
