Titramax VT SULPHUR
Precision Sulphur Analysis in Liquids
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 play/stop
reading button icon
Product description
The Titramax VT SULPHUR is specifically designed for the accurate determination of sulphur compounds, such as hydrogen sulphide and mercaptan sulphur, in liquid hydrocarbons and oils.

Using a volumetric titration method with silver nitrate solution in an anhydrous medium, the system facilitates the formation of silver sulphide (Ag₂S) and silver mercaptides. To ensure precise results and prevent the oxidation of sulphur compounds, all analyses are performed under an inert gas atmosphere.

The titration speed is dynamically regulated through advanced control algorithms, ensuring it matches the reaction rate precisely. The system identifies two distinct end points — one for hydrogen sulphide and another for mercaptan sulphur.

Upon completion of the analysis, results are displayed in mg/kg (ppm) for hydrogen sulphide and/or mercaptan sulphur, with options for output in several other units.
Bild mit Text unten rechts

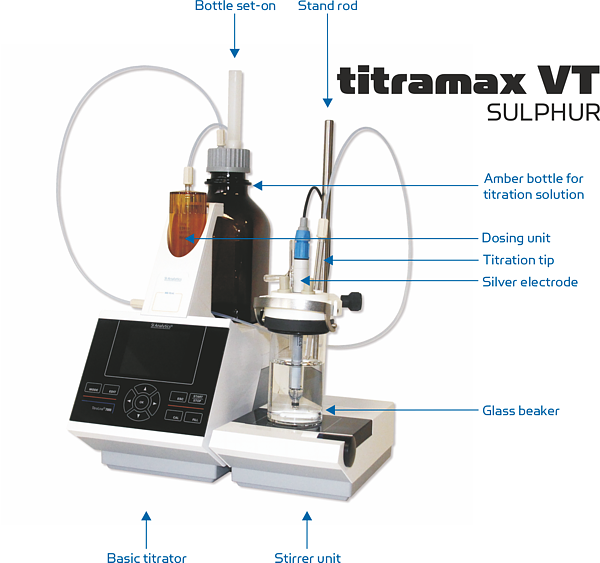

Titramax VT Sulphur
Titramax VT Sulphur
MP3 play/stop
reading button icon
Standard Conformity
ASTM D 3227, ISO 3012, UOP 163, UOP 212
MP3 play/stop
reading button icon
Applications
The Sulphur Titrator is suitable for analysis of
  • fuels (gasoline, kerosines, aviation turbine fuels)
  • volatile distillates, middle distillates
  • liquified petroleum gas (LPG)
  • naphtha (petroleum)
  • low boiling oils
  • light cycle oils
  • heavy cycle oils
MP3 play/stop
reading button icon
Advantages
  • Complete measuring system for the determination of hydrogen sulphide and mercaptan sulphur
  • Fully-automatic volumetric titration
  • Precise adjustment of the titration parameters by control algorithms
  • Preset measurement method allows an immediate start
  • The result output can be adjusted to your needs by using a formula generator
Bild mit Text unten rechts
Titration graph of a sample
Titration graph of a sample
MP3 play/stop
reading button icon
Features and Results
  • an automatic volumetric titrator with potentiometric indication
  • a titration vessel with stirrer unit
The determination of hydrogen sulphide/mercaptan sulphur is based on
  • a potentiometric titration with silver nitrate solution in an anhydrous medium
  • a precise indication by a selective silver electrode, which is stable over long periods
Steps of the analysis

  1. Standardization of the titration solution
  2. Titration of oil sample or absorption liquid
Bild mit Text unten rechts
Titramax VT Sulphur
Titramax VT Sulphur
MP3 play/stop
reading button icon
Technical specifications
Device Type
Main unit
Power supply
External plug-in power supply 100 - 240 V, 50/60 Hz
Power input
30 VA
Stirrer connection
12 V DC out, 500 mA
Dimensions (L x H x D)
300 x 450 x 300 mm
Weight
3,5 kg
