Titramax VT Water
Precise Water Content Determination with Karl Fischer Titration
below this description you will find pdf for download  Downloads
PDF Links - Open in New Window
MP3 play/stop
reading button icon
Product description
The Titramax VT WATER enables easy and precise determination of the water content in liquid samples. Based on volumetric titration according to the Karl Fischer method, the device offers fast and reliable results across a wide range of applications.

During the titration process, the actual titration curve and measurement drift are displayed in real time, along with solvent consumption, giving users full transparency and control. Standard methods for different application areas are pre-programmed for user convenience.

The measurement employs a potentiometric titration method in an anhydrous medium. Titration automatically starts once the sample is dosed into the reagent, with the user simply entering the sample weight into the system menu. The titration speed is precisely regulated using advanced control algorithms, ensuring accurate reaction tracking.

The titration is fully automated until the endpoint is detected. Upon completion, results are displayed in ppm water or in various other selectable units.
Bild mit Text unten rechts
Titramax VT Water
Titramax VT Water
MP3 play/stop
reading button icon
Standard Conformity
ASTM D 4377, ASTM D 6869, ASTM E 203, DIN 51777, IP 356, IP 471, ISO 10336, ISO 6296
MP3 play/stop
reading button icon
Applications
The titrator is suitable for analysis of water in alcoholic and similar liquids:
  • methanol
  • isopropyl alcohol
  • glycol
  • other organic liquids
MP3 play/stop
reading button icon
Advantages
  • Complete measuring system for the water determination
  • Fully-automatic volumetric titration
  • Precise adjustment of the titration parameters by control algorithms
  • Preset measurement method allows an immediate start
  • The result output can be adjusted to your needs by using a formula generator
Bild mit Text unten rechts
Titration graph of ethanol sample
Titration graph of ethanol sample
MP3 play/stop
reading button icon
Features and Results

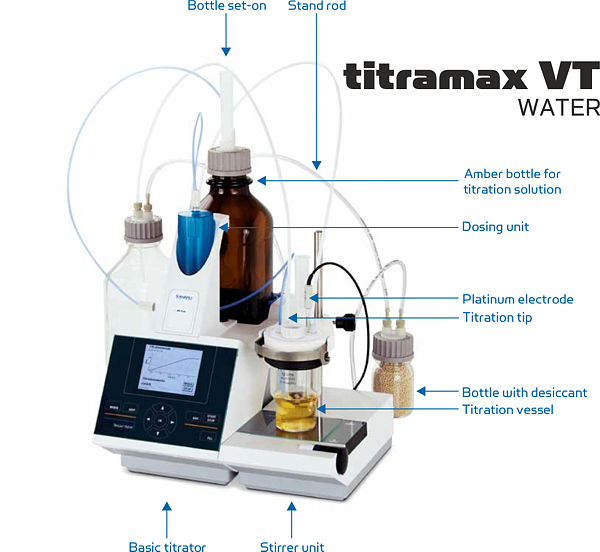

  • an automatic volumetric titrator with potentiometric indication
  • a titration vessel with stirrer unit
The determination of water content is based on
  • a potentiometric titration in an anhydrous medium
  • a precise indication by a selective platinum electrode, which is stable over long periods
Steps of the analysis

  1. Titration of blank value - water content of vessel and solvent (conditioning of system)
  2. Determination of the titrant concentration with standard
  3. Titration of the samples
Bild mit Text unten rechts
Titramax VT Water
Titramax VT Water
MP3 play/stop
reading button icon
Technical specifications
Device Type
Main unit
Power supply
External plug-in power supply 100 - 240 V, 50/60 Hz
Power input
30 VA
Stirrer connection
12 V DC out, 500 mA
Dimensions (L x H x D)
300 x 450 x 300 mm
Weight
3,5 kg
